KSL欧式电动单梁起重机

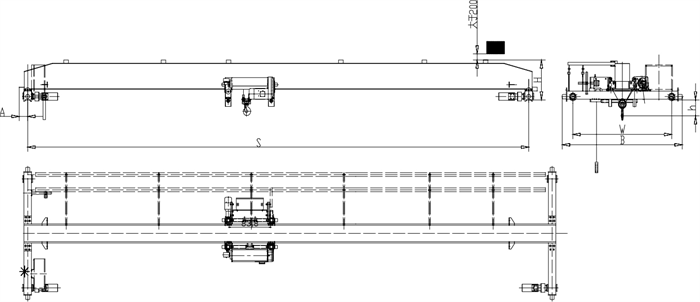

S—起重机跨度 Crane span

H—起重机运行轨道顶部距起重机高点的距离 The distance from the crane travel rail top to the crane highest point.

h—起重机吊钩升到高点时距起重机运行轨道顶部的距离 The distance to the crane travel rail top when the hook moves to the top point.

A—大车轨道中心到端梁外侧的距离 The distance from the crane rail center to the end girder outside.

W—大车端梁轮距 Crane end girder wheel distance.

B—大车端梁（含缓冲器）的长度 The length of the crane end girder including the buffer.

注notes：

1、大车运行标准速度为2-20m/min（变频调速）；

The standard travelling speed of crane is 3-30m/min (frequency conversion)

小车运行标准速度为2-20m/min（变频调速）；

The standard travelling speed of trolley is 2-20m/min (frequency conversion)

2、除了标准起升速度外，还有多种速度可供选择，也可选用变频控制起升。

There are many optional speed levels and frequency control lifting except the standard speed.

3、控制方式有多种：地操操作、遥控器操作及两者的组合。

Control methods: ground control, remote control and the combination control of the two.

4、表格中数据仅供参考，如有变更，恕不另作通知。

The data listed in the form is only for reference. Please forgive the non-informing if the date changed.

5、具体事宜或特殊请求请与我公司协商。

Please contact us for more details and special requirements.
